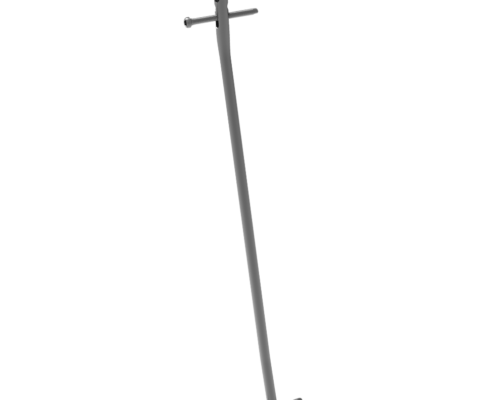

Rendered image of a PNP Tibia Nail

PNP | Tibia

PNP | Tibia is a titanium rigid nail for tibia fractures and deformity correction in the pediatric population. It was designed by leading pediatric orthopedic surgeons with the unique anatomy of the growing child in mind. Nails are available in 7mm – 12mm from 24cm to 42cm depending on the nail diameter. Multiple locking options are available with unique instrumentation supporting both infrapatellar and suprapatellar techniques.

This product may not be available in all markets. Please consult your local OP representative for availability.

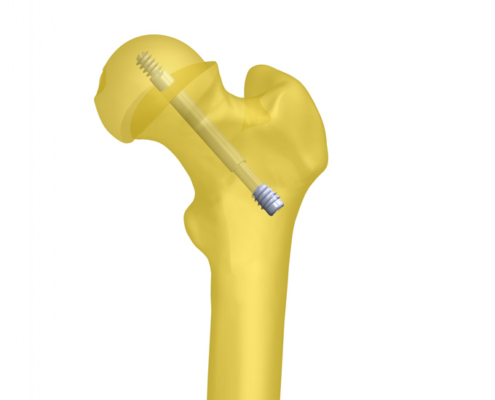

Diagram of the screw system in a femur bone

Free-Gliding SCFE Screw System™

The Free-Gliding SCFE Screw System is specifically designed to treat the most common hip problem in growing children: Slipped Capital Femoral Epiphysis (SCFE). This screw is intended to prophylactically prevent or stop further slippage of the capito-femoral physis in children with open growth plates, without affecting the normal growth of the proximal femur.

Medial and lateral threaded fixations, connected through a trilobe self-extending shaft, aim to increase overall stability (both longitudinal and rotational) while avoiding the risk of premature physeal closure.

The Free-Gliding SCFE Screw System is available in 6.5 mm and 7.3 mm diameters, with lengths ranging from 60 mm to 102 mm in 2 mm increments, and with a maximum of 30 mm of growth potential.

This product may not be available in all markets. Please consult your local OP representative for availability.

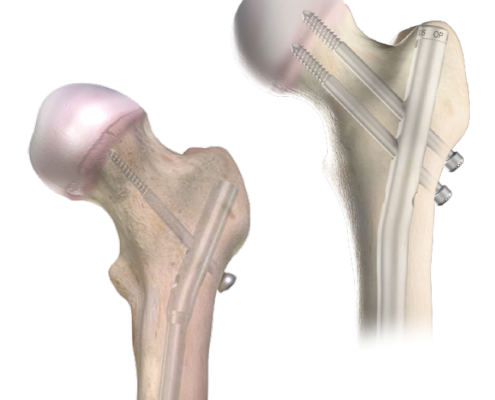

Rigid Nail implant in the bone

Rigid Nail Extraction Set

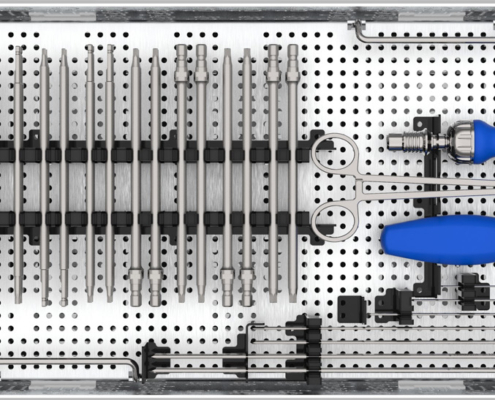

The OrthoPediatrics Rigid Nail Extraction Set is a comprehensive solution for removing PNP Child, PNP Adolescent, and PediNail. The set is equipped with instruments to remove nails from start to finish: multiple sizes of entry reamers for nail access, slap hammer compatible cannulated extractors, screwdrivers and stripped screw “Easy off”, broken nail removal hooks, and a chisel for retrograde broken nail removals.

This product may not be available in all markets. Please contact your local OP representative for availability.

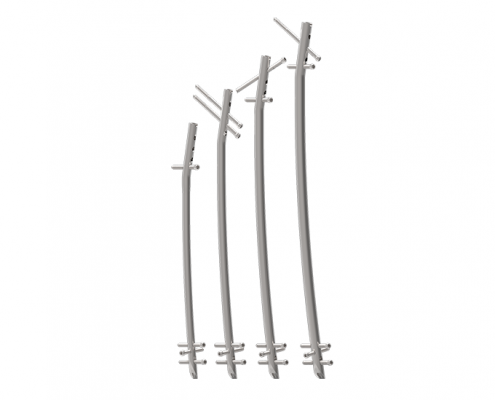

Pediatric Nailing Platform | Femur

Pediatric Nailing Platform | Femur

Pediatric Nailing Platform | FEMUR is designed for use in pediatric and small stature adult patients as indicated to stabilize fractures of the femoral shaft; subtrochanteric fractures; ipsilateral neck/shaft fractures; prophylactic nailing of impending pathologic fractures; nonunions and malunions; fixation of femurs that have been surgically prepared (osteotomies) for correction of deformity. The system is available in child and adolescent configurations. Child nails come in 7mm, 8mm, and 9mm diameters. Adolescent nails come in 9mm, 10mm, 11mm, and 12mm diameters. Nail lengths range from 20cm to 42cm depending on the nail diameter. The system also features both proximal and distal interlocking screw options.

This product may not be available in all markets. Please consult your local OP representative for availability.

SCFE

SCFE

The new 6.5mm-7.3mm cannulated screws have been completely rethought and precisely designed with a focus on Slipped Capital Epiphysis injuries. The system includes innovative instrumentation and screws are available in various threads and lengths to satisfy the needs of a busy pediatric orthopedic practice.

This product may not be available in all markets. Please consult your local OP representative for availability.

Cannulated Screws

Cannulated Screws

OrthoPediatrics is pleased to launch the next generation Cannulated Screw System! The new system is available in multiple screw diameters including: 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm and 5.5mm. For each configuration, all screws and instruments are housed in one case/tray – giving the added convenience of an “all-in-one” set. The upgraded instrumentation, and color-coding aid in the selection of associated instruments for each screw diameter and layout for procedural flow. Given our commitment to provide orthopedic surgeons with the tools they need to treat KIDS, this system was designed specifically for pediatric patients – paying special attention to extraction instrumentation.

This product may not be available in all markets. Please consult your local OP representative for availability.

PediFrag Wrist

PediFrag – Wrist Fusion

The OrthoPediatrics Wrist Fusion System is an extension of the PediFrag system, and is indicated for wrist arthrodesis and fractures of other small bones in children, adolescents, and small stature adults. The system consists of two implant length offerings, to fit patients both with and without a proximal row carpectomy (PRC). Bending templates are included in the set to assist with intra-operative contouring of the plate into either dorsiflexion or palmar flexion.

This product may not be available in all markets. Please consult your local OP representative for availability.

FediFrag Clavicle

PediFrag – Clavicle

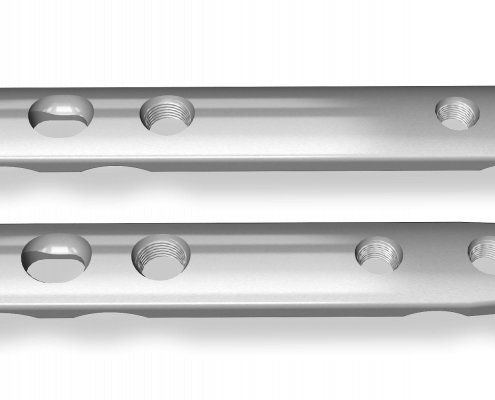

OrthoPediatrics Corp. is pleased to announce the launch of the PediFrag™ Pediatric Specific Clavicle Plate. This innovative new plate is specifically designed for treating mid-shaft clavicle fractures in young patients. The OP Clavicle Plates are unique due to their pre-contoured shape. This curvature was derived from studying 36 pediatric clavicle skeletons from OrthoPediatrics’ exclusive access to the Hamann-Todd skeletal collection in Cleveland, Ohio.

This product may not be available in all markets. Please consult your local OP representative for availability.

PediNail

PediNail™

The PediNail Intramedullary Nail is anatomically designed to meet the unique needs of pediatric and adolescent patients, and is available in diameters of 7, 8, 9, and 10mm with lengths ranging from 20-38cm. The procedure is performed using a lateral trochanteric entry point to facilitate a simplified procedure, and reduces the danger to blood vessels near the piriformis fossa.

The nails complex three-dimensional geometry includes a proximal lateral bend to accommodate its trochanteric entry point and smaller diameter that allows for easier insertion without the need for excessive reaming, or widening, of the canal. The nail also has an anterior bow, which mimics normal pediatric anatomy for children ages 8-16, as well as a distal lateral bend to ease insertion lateral to the greater trochanter, minimizing medial cortex interference.

This product may not be available in all markets. Please consult your local OP representative for availability.

PediFrag

PediFrag

The OP PediFrag System is a unique combination fragment set specifically designed by pediatric orthopedic surgeons for pediatric orthopedic surgery. This 3-in-1 system combines the optimal portions of mini fragment, small fragment and 4.0mm cannulated screw systems to specifically support fracture management to meet the unique needs of the pediatric patient, surgeon, and hospital employees. The PediFrag 2.7/3.5mm system is intended to provide temporary internal fixation and stabilization of long bones, short (small) bones, pelvis, and scapula. It includes the plates, screws and instruments needed to repair a wide range of indications. The system also utilizes a user-friendly, color-coded design to enhance intraoperative and SPD efficiencies.

This product may not be available in all markets. Please consult your local OP representative for availability.
